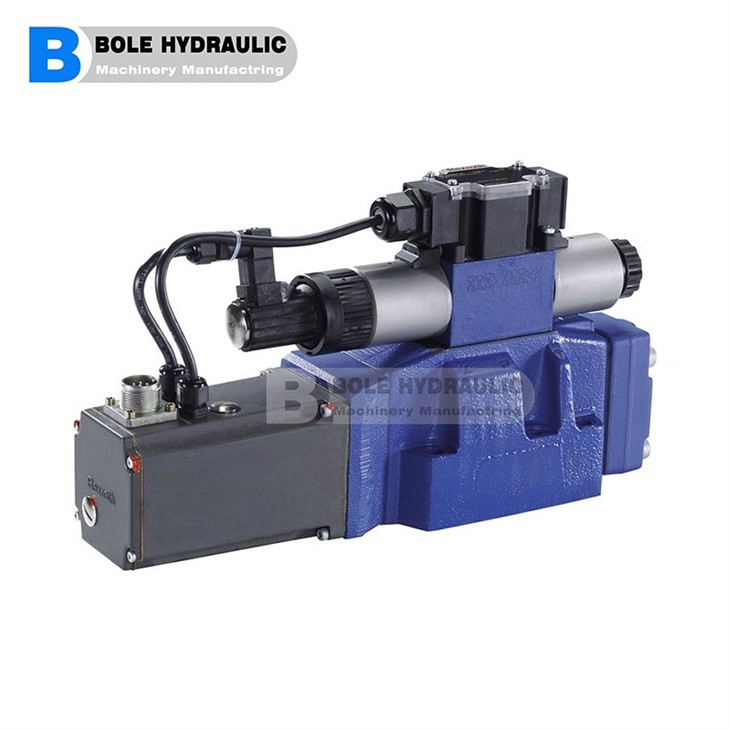

Rexroth 4wrke Series Vàlvula Direccional proporcional
Mida 10, 16, 25, 27, 32, 35
Sèrie de components 3x
Pressió de funcionament màxima 350 bar
Flux màxim 3000 L/min
Funcions
*Vàlvules direccionals proporcionades a l'etapa de Pilot 2- amb la seva posició elèctrica.
*Funcionament proporcional de solenoides
Per al muntatge de la placa: patró de portatge segons la retroalimentació de la posició elèctrica ISO 4401
*Vàlvula de control del pilot de control principal de control principal: vàlvula direccional proporcional d'una etapa
*Etapa principal amb control de posició
Codi de tipus:
|
01 |
02 |
03 |
04 |
05 |
06 |
|
07 |
|
08 |
09 |
10 |
11 |
|
12 |
13 |
14 |
15 |
|
4 |
Molla |
|
|
|
|
‒ |
3X |
/ |
6E |
G24 |
|
K31 |
/ |
|
D3 |
|
* |
|
01 |
4 ports principals |
4 |
|
02 |
Vàlvula direccional proporcional amb retroalimentació de posició elèctrica i electrònica integrada (OBE) |
Molla |
|
03 |
Mida 10 |
10 |
|
|
Mida 16 |
16 |
|
|
Mida 25 |
25 |
|
|
Mida 27 |
27 |
|
|
Mida 32 |
32 |
|
|
Mida 35 |
35 |
|
04 |
Símbols; Per a la versió possible, vegeu "Diagrames de símbols/circuits" |
E; E 1-; E 3-; W 6-; W 8-; R; R3; EA; W6a; Eb; W6B |
|
Flux nominal NG10 |
||
|
05 |
25 l/min |
251) |
|
50 l/min |
502) |
|
|
100 l/min |
100 |
|
|
Flux nominal NG16 |
||
|
05 |
125 l/min |
1252) |
|
150 l/min |
1502) |
|
|
200 l/min |
200 |
|
|
220 l/min |
220 |
|
|
Flux nominal NG25 |
||
|
05 |
220 l/min |
220 |
|
350 L/min |
350 |
|
|
Flux nominal NG27 |
||
|
05 |
500 l/min |
500 |
|
Mida 32 |
||
|
05 |
400 L/min |
400 |
|
600 L/min |
600 |
|
|
Mida 35 |
||
|
05 |
1000 l/min |
1000 |
|
Forma de corba característica |
||
|
06 |
Lineal |
L |
|
Lineal amb un rang de control fins |
P |
|
|
07 |
Sèrie de components 30 ... 39 (30 ... 39: Dimensions d'instal·lació i connexió sense canvis) |
3X |
|
08 |
Vàlvula de control pilot NG6 |
6E |
|
09 |
Tensió de subministrament 24 V |
G24 |
|
Subministrament i retorn de petroli pilot |
||
|
10 |
Subministrament de petroli de pilot extern, retorn de petroli pilot extern |
Sense codi |
|
Subministrament de petroli pilot intern, retorn de petroli de pilot extern |
E |
|
|
Subministrament de petroli pilot intern, Retorn de petroli pilot intern intern |
Et |
|
|
Subministrament de petroli de pilot extern, Retorn de petroli pilot intern |
T |
|
|
Connexió elèctrica |
||
|
11 |
Sense connector d’aparellament, connector segons Din en 175201-804 |
K31 |
|
Interfície elèctrica |
||
|
12 |
Valor de comandament/valor real ± 10 mA |
C1 |
|
Valor de comandament/valor real ± 10 V |
A13) |
|
|
Valor de comandament/valor real ± 10 V |
A5 |
|
|
Valor de comandament/valor real 4 ... 20 mA |
F1 |
|
|
13 |
Amb la vàlvula reduïda de pressió ZDR 6 dp 0-4 x/40ym-w80 (fixament definit) |
D3 |
|
14 |
Segells NBR |
M |
|
Fkm segells |
V |
|
|
15 |
Més detalls al text normal |
* |
|
1) |
Només e i w 6- amb forma de corba característicaL(lineal) Disponible |
|
|
2) |
Només e 1- i w 8- amb forma de corba característicaL(lineal) Disponible |
|
|
3) |
En substituir la sèrie de components 2x per 3x, la interfície electrònicaA5s'ha de definir (activeu el senyal al pin C |
|
Vàlvula direccional proporcional de la sèrie Rexroth 4Wrke27 A la venda, curt termini, millor preu !!!
| R901025115 | 4wrke27e500l -3 x/6eg24ek31/a5d3m |
| R901172257 | 4wrke27e500l -3 x/6eg24tk31/a5d3wc15m |
| R901116067 | 4wrke27q 1-500 l -3 x/6eg24k31/a1d3m |
| R901192918 | 4wrke27w 4-500 p -3 x/6eg24k31/a5d3m -182 |
| R901109412 | 4wrke27w500p -3 x/6eg24ek31/a1d3m -877 |
| R901124218 | 4wrke27w500p -3 x/6eg24k31/a1d3m -877 |
| R901050041 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3v |
| R901057533 | 4wrke27w 8-500 l -3 x/6eg24ek31/a1d3m -280 |
| R901052728 | 4wrke27w 8-500 l -3 x/6eg24ek31/a5d3v |
| R901148875 | 4wrke27w 8-500 l -3 x/6eg24ek31/c1d3m |
| R900747560 | 4wrke27w 8-500 p -3 x/6eg24k31/a5d3m -577 |
| R900249274 | 4wrke27e 1-500 l -3 x/6eg24ek31/a1d3m |
| R901268865 | 4wrke27e 1-500 l -3 x/6eg24ek31/a1d3v |
| R900717642 | 4wrke27e 1-500 l -3 x/6eg24ek31/a5d3m |
| R900724347 | 4wrke27e 1-500 l -3 x/6eg24ek31/a5d3m -280 |
| R901296528 | 4wrke27e 1-500 l -3 x/6eg24ek31/f1d3m |
| R901051417 | 4wrke27e 1-500 l -3 x/6eg24etk31/a1d3m |
| R900249923 | 4wrke27e 1-500 l -3 x/6eg24k31/a1d3m |
| R901079320 | 4wrke27e 1-500 l -3 x/6eg24k31/a1d3v |
| R901040707 | 4wrke27e 1-500 l -3 x/6eg24k31/a5d3m |
| R901293038 | 4wrke27e 1-500 l -3 x/6eg24k31/a5d3m -280 |
| R901229824 | 4wrke27e 1-500 l -3 x/6eg24k31/c1d3m |
| R901348665 | 4wrke27e 1-500 l -3 x/6eg24k31/f1d3m |
| R901548085 | 4wrke27e 1-500 l -3 x/6eg24k31/f1d3v |
| R901555462 | 4wrke27e 1-500 p -3 x/6eg24etk31/f1d3m |
| R901224825 | 4wrke27e 1-500 p -3 x/6eg24k31/f1d3m |
| R901039097 | 4wrke27e500l -3 x/6eg24ek31/a1d3m |
| R901266055 | 4wrke27e500l -3 x/6eg24ek31/a1d3v |
| R901267566 | 4wrke27e500l -3 x/6eg24ek31/f1d3m |
| R901435011 | 4wrke27e500l -3 x/6eg24etk31/f1d3m |
| R901092786 | 4wrke27e500l -3 x/6eg24k31/a1d3m |
| R901220391 | 4wrke27e500l -3 x/6eg24k31/a1d3m=xv |
| R901077093 | 4wrke27e500l -3 x/6eg24k31/a1d3v |
| R901549112 | 4wrke27e500l -3 x/6eg24k31/a1m -909 |
| R901135347 | 4wrke27e500l -3 x/6eg24k31/a5d3m |
| R901057986 | 4wrke27e500l -3 x/6eg24k31/a5d3m -280 |
| R901130165 | 4wrke27e500l -3 x/6eg24k31/c1d3m |
| R901133144 | 4wrke27e500l -3 x/6eg24k31/f1d3m |
| R901414322 | 4wrke27e500l -3 x/6eg24k31/f1d3v |
| R901210319 | 4wrke27e500p -3 x/6eg24etk31/a1d3m |
| R901241021 | 4wrke27e500p -3 x/6eg24k31/a1d3m |
| R901264931 | 4wrke27r 3-500 l -3 x/6eg24ek31/a1d3m |
| R901266856 | 4wrke27r 3-500 l -3 x/6eg24k31/a1d3m |
| R901099052 | 4wrke27r 3-500 l -3 x/6eg24tk31/a1d3m |
| R901441366 | 4wrke27r 5-500 l -3 x/6eg24ek31/a1d3m -903 |
| R901463313 | 4wrke27w 000 l -3 x/6eg24k31/a1d3m-a25 |
| R901545842 | 4wrke27w 4-500 l -3 x/6eg24k31/a1d3m-a54 |
| R901533811 | 4wrke27w 4-500 l -3 x/6eg24k31/a1d3m-a58 |
| R900708992 | 4wrke27w 4-500 l -3 x/6eg24k31/a5d3m |
| R901550948 | 4wrke27w500l -3 x/6EG24K31/A1D3M-A76 |
| R901303285 | 4wrke27w500p -3 x/6eg24etk31/a5d3m -709= i |
| R901324993 | 4wrke27w500p -3 x/6eg24k31/a5d3m -709 |
| R900710940 | 4wrke27w500p -3 x/6eg24k31/a5d3m -709= DE |
| R901041512 | 4wrke27w 6-500 l -3 x/6eg24ek31/a1d3m |
| R901220494 | 4wrke27w 6-500 l -3 x/6eg24ek31/a1d3m=xv |
| R901551918 | 4wrke27w 6-500 l -3 x/6eg24ek31/a1m -909 |
| R900735040 | 4wrke27w 6-500 l -3 x/6eg24ek31/a5d3m |
| R901176012 | 4wrke27w 6-500 l -3 x/6eg24ek31/a5d3v -280 |
| R901169415 | 4wrke27w 6-500 l -3 x/6eg24ek31/f1d3m |
| R901169989 | 4wrke27w 6-500 l -3 x/6eg24etk31/a1d3m |
| R901216638 | 4wrke27w 6-500 l -3 x/6eg24etk31/a1d3v |
| R900755687 | 4wrke27w 6-500 l -3 x/6eg24etk31/a5d3m |
| R901213877 | 4wrke27w 6-500 l -3 x/6eg24etk31/a5d3m535 i |
| R901204539 | 4wrke27w 6-500 l -3 x/6eg24etk31/f1d3m |
| R900731496 | 4wrke27w 6-500 l -3 x/6eg24k31/a1d3m |
| R901559292 | 4wrke27w 6-500 l -3 x/6eg24k31/a1d3m -259 |
| R978916045 | 4wrke27w 6-500 l -3 x/6eg24k31/a1d3m43a1295 |
| R901430698 | 4wrke27w 6-500 l -3 x/6eg24k31/a1d3m -772 |
| R900616821 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m |
| R901400201 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m -280 |
| R978916104 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m43a1295 |
| R901272383 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m -535 |
| R900702111 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m -535= i |
| R901106202 | 4wrke27w 6-500 l -3 x/6eg24k31/a5d3m -871= i |
| R901313951 | 4wrke27w 6-500 l -3 x/6eg24k31/c1d3m |
| R901147944 | 4wrke27w 6-500 l -3 x/6eg24k31/f1d3m |
| R901209787 | 4wrke27w 6-500 l -3 x/6eg24tk31/a5d3m |
| R901329115 | 4wrke27w 6-500 p -3 x/6eg24k31/a1d3m |
| R900701429 | 4wrke27w 8-500 l -3 x/6eg24ek31/a1d3m |
| R900725366 | 4wrke27w 8-500 l -3 x/6eg24ek31/a5d3m |
| R900778594 | 4wrke27w 8-500 l -3 x/6eg24ek31/a5d3m -280 |
| R901097952 | 4wrke27w 8-500 l -3 x/6eg24ek31/f1d3m |
| R901199286 | 4wrke27w 8-500 l -3 x/6eg24etk31/a1d3m |
| R901126339 | 4wrke27w 8-500 l -3 x/6eg24etk31/a5d3m |
| R901115085 | 4wrke27w 8-500 l -3 x/6eg24etk31/f1d3m |
| R901250339 | 4wrke27w 8-500 l -3 x/6eg24etk31/f1d3v |
| R900750794 | 4wrke27w 8-500 l -3 x/6eg24k31/a1d3m |
| R900706180 | 4wrke27w 8-500 l -3 x/6eg24k31/a5d3m |
| R901088135 | 4wrke27w 8-500 l -3 x/6eg24k31/a5d3m -535 |
| R901023812 | 4wrke27w 8-500 l -3 x/6eg24k31/a5d3v |
| R901404792 | 4wrke27w 8-500 l -3 x/6eg24k31/c1d3m |
| R901072883 | 4wrke27w 8-500 l -3 x/6eg24k31/f1d3m |
| R901274300 | 4wrke27w 8-500 l -3 x/6eg24k31/f1d3v |
| R901051312 | 4wrke27w 8-500 l -3 x/6eg24tk31/a1d3m |
| R901083317 | 4wrke27w 8-500 p -3 x/6eg24k31/a5d3m |
| R901057319 | 4wrke27w 9-500 l -3 x/6eg24k31/a5d3m |
