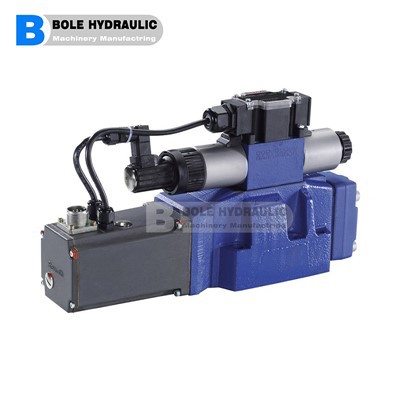

Vàlvula direccional proporcional de la sèrie Rexroth 4WRKE
Talles 10, 16, 25, 27, 32, 35
Sèrie de components 3X
Pressió màxima de funcionament 350 bar
Caudal màxim 3000 l/min
Característiques
*Vàlvules direccionals proporcionals de 2-etapa pilotades amb retroalimentació elèctrica de la posició de la bobina de control principal i electrònica integrada (OBE) Control de la direcció i la mida del flux
*Funcionament de solenoide proporcional
Per al muntatge de subplaca: patró de ports segons ISO 4401 Feedback de la posició elèctrica
* Carret de control principal centrat en la molla Vàlvula de control pilot: vàlvula direccional proporcional d'una sola etapa
*Escenari principal amb control de posició
Codi tipus:
|
01 |
02 |
03 |
04 |
05 |
06 |
|
07 |
|
08 |
09 |
10 |
11 |
|
12 |
13 |
14 |
15 |
|
4 |
WRKE |
|
|
|
|
‒ |
3X |
/ |
6E |
G24 |
|
K31 |
/ |
|
D3 |
|
* |
|
01 |
4 ports principals |
4 |
|
02 |
Vàlvula direccional proporcional amb retroalimentació elèctrica de posició i electrònica integrada (OBE) |
WRKE |
|
03 |
Talla 10 |
10 |
|
|
Talla 16 |
16 |
|
|
Talla 25 |
25 |
|
|
Talla 27 |
27 |
|
|
Talla 32 |
32 |
|
|
Talla 35 |
35 |
|
04 |
símbols; per a la versió possible, vegeu "Símbols/Esquemes de circuit" |
E; E1-; E3-; W6-; W8-; R; R3; EA; W6A; EB; W6B |
|
Caudal nominal NG10 |
||
|
05 |
25 l/min |
251) |
|
50 l/min |
502) |
|
|
100 l/min |
100 |
|
|
Caudal nominal NG16 |
||
|
05 |
125 l/min |
1252) |
|
150 l/min |
1502) |
|
|
200 l/min |
200 |
|
|
220 l/min |
220 |
|
|
Caudal nominal NG25 |
||
|
05 |
220 l/min |
220 |
|
350 l/min |
350 |
|
|
Caudal nominal NG27 |
||
|
05 |
500 l/min |
500 |
|
Talla 32 |
||
|
05 |
400 l/min |
400 |
|
600 l/min |
600 |
|
|
Talla 35 |
||
|
05 |
1000 l/min |
1000 |
|
Forma de corba característica |
||
|
06 |
Lineal |
L |
|
Lineal amb rang de control fi |
P |
|
|
07 |
Sèrie de components 30 ... 39 (30 ... 39: dimensions d'instal·lació i connexió sense canvis) |
3X |
|
08 |
Vàlvula de control pilot NG6 |
6E |
|
09 |
Tensió d'alimentació 24 V |
G24 |
|
Subministrament i retorn d'oli pilot |
||
|
10 |
Subministrament d'oli de pilot extern, retorn d'oli de pilot extern |
sense codi |
|
Subministrament intern d'oli de pilotatge, retorn d'oli de pilot extern |
E |
|
|
Subministrament d'oli pilot intern, retorn d'oli pilot intern |
ET |
|
|
Subministrament d'oli de pilot extern, retorn d'oli de pilot intern |
T |
|
|
Connexió elèctrica |
||
|
11 |
Sense connector d'acoblament, connector segons DIN EN 175201-804 |
K31 |
|
Interfície elèctrica |
||
|
12 |
Valor de comandament/valor real ±10 mA |
C1 |
|
Valor de comanda/valor real ±10 V |
A13) |
|
|
Valor de comanda/valor real ±10 V |
A5 |
|
|
Valor de comandament/valor real 4 ... 20 mA |
F1 |
|
|
13 |
Amb vàlvula reductora de pressió ZDR 6 DP0-4X/40YM-W80 (configurada fixament) |
D3 |
|
14 |
Segells de NBR |
M |
|
Segells FKM |
V |
|
|
15 |
Més detalls al text pla |
* |
|
1) |
Només E i W6- amb forma de corba característicaL(lineal) disponible |
|
|
2) |
Només E1- i W8- amb forma de corba característicaL(lineal) disponible |
|
|
3) |
En substituir la sèrie de components 2X per 3X, la interfície electrònicaA5s'ha de definir (habiliteu el senyal al pin C |
|
Vàlvula direccional proporcional de la sèrie Rexroth 4WRKE27 a la venda, curt termini de lliurament, millor preu!!!
| R901025115 | 4WRKE27E500L-3X/6EG24EK31/A5D3M |
| R901172257 | 4WRKE27E500L-3X/6EG24TK31/A5D3WC15M |
| R901116067 | 4WRKE27Q1-500L-3X/6EG24K31/A1D3M |
| R901192918 | 4WRKE27W4-500P-3X/6EG24K31/A5D3M-182 |
| R901109412 | 4WRKE27W500P-3X/6EG24EK31/A1D3M-877 |
| R901124218 | 4WRKE27W500P-3X/6EG24K31/A1D3M-877 |
| R901050041 | 4WRKE27W6-500L-3X/6EG24K31/A5D3V |
| R901057533 | 4WRKE27W8-500L-3X/6EG24EK31/A1D3M-280 |
| R901052728 | 4WRKE27W8-500L-3X/6EG24EK31/A5D3V |
| R901148875 | 4WRKE27W8-500L-3X/6EG24EK31/C1D3M |
| R900747560 | 4WRKE27W8-500P-3X/6EG24K31/A5D3M-577 |
| R900249274 | 4WRKE27E1-500L-3X/6EG24EK31/A1D3M |
| R901268865 | 4WRKE27E1-500L-3X/6EG24EK31/A1D3V |
| R900717642 | 4WRKE27E1-500L-3X/6EG24EK31/A5D3M |
| R900724347 | 4WRKE27E1-500L-3X/6EG24EK31/A5D3M-280 |
| R901296528 | 4WRKE27E1-500L-3X/6EG24EK31/F1D3M |
| R901051417 | 4WRKE27E1-500L-3X/6EG24ETK31/A1D3M |
| R900249923 | 4WRKE27E1-500L-3X/6EG24K31/A1D3M |
| R901079320 | 4WRKE27E1-500L-3X/6EG24K31/A1D3V |
| R901040707 | 4WRKE27E1-500L-3X/6EG24K31/A5D3M |
| R901293038 | 4WRKE27E1-500L-3X/6EG24K31/A5D3M-280 |
| R901229824 | 4WRKE27E1-500L-3X/6EG24K31/C1D3M |
| R901348665 | 4WRKE27E1-500L-3X/6EG24K31/F1D3M |
| R901548085 | 4WRKE27E1-500L-3X/6EG24K31/F1D3V |
| R901555462 | 4WRKE27E1-500P-3X/6EG24ETK31/F1D3M |
| R901224825 | 4WRKE27E1-500P-3X/6EG24K31/F1D3M |
| R901039097 | 4WRKE27E500L-3X/6EG24EK31/A1D3M |
| R901266055 | 4WRKE27E500L-3X/6EG24EK31/A1D3V |
| R901267566 | 4WRKE27E500L-3X/6EG24EK31/F1D3M |
| R901435011 | 4WRKE27E500L-3X/6EG24ETK31/F1D3M |
| R901092786 | 4WRKE27E500L-3X/6EG24K31/A1D3M |
| R901220391 | 4WRKE27E500L-3X/6EG24K31/A1D3M=XV |
| R901077093 | 4WRKE27E500L-3X/6EG24K31/A1D3V |
| R901549112 | 4WRKE27E500L-3X/6EG24K31/A1M-909 |
| R901135347 | 4WRKE27E500L-3X/6EG24K31/A5D3M |
| R901057986 | 4WRKE27E500L-3X/6EG24K31/A5D3M-280 |
| R901130165 | 4WRKE27E500L-3X/6EG24K31/C1D3M |
| R901133144 | 4WRKE27E500L-3X/6EG24K31/F1D3M |
| R901414322 | 4WRKE27E500L-3X/6EG24K31/F1D3V |
| R901210319 | 4WRKE27E500P-3X/6EG24ETK31/A1D3M |
| R901241021 | 4WRKE27E500P-3X/6EG24K31/A1D3M |
| R901264931 | 4WRKE27R3-500L-3X/6EG24EK31/A1D3M |
| R901266856 | 4WRKE27R3-500L-3X/6EG24K31/A1D3M |
| R901099052 | 4WRKE27R3-500L-3X/6EG24TK31/A1D3M |
| R901441366 | 4WRKE27R5-500L-3X/6EG24EK31/A1D3M-903 |
| R901463313 | 4WRKE27W000L-3X/6EG24K31/A1D3M-A25 |
| R901545842 | 4WRKE27W4-500L-3X/6EG24K31/A1D3M-A54 |
| R901533811 | 4WRKE27W4-500L-3X/6EG24K31/A1D3M-A58 |
| R900708992 | 4WRKE27W4-500L-3X/6EG24K31/A5D3M |
| R901550948 | 4WRKE27W500L-3X/6EG24K31/A1D3M-A76 |
| R901303285 | 4WRKE27W500P-3X/6EG24ETK31/A5D3M-709=& |
| R901324993 | 4WRKE27W500P-3X/6EG24K31/A5D3M-709 |
| R900710940 | 4WRKE27W500P-3X/6EG24K31/A5D3M-709=DE |
| R901041512 | 4WRKE27W6-500L-3X/6EG24EK31/A1D3M |
| R901220494 | 4WRKE27W6-500L-3X/6EG24EK31/A1D3M=XV |
| R901551918 | 4WRKE27W6-500L-3X/6EG24EK31/A1M-909 |
| R900735040 | 4WRKE27W6-500L-3X/6EG24EK31/A5D3M |
| R901176012 | 4WRKE27W6-500L-3X/6EG24EK31/A5D3V-280 |
| R901169415 | 4WRKE27W6-500L-3X/6EG24EK31/F1D3M |
| R901169989 | 4WRKE27W6-500L-3X/6EG24ETK31/A1D3M |
| R901216638 | 4WRKE27W6-500L-3X/6EG24ETK31/A1D3V |
| R900755687 | 4WRKE27W6-500L-3X/6EG24ETK31/A5D3M |
| R901213877 | 4WRKE27W6-500L-3X/6EG24ETK31/A5D3M535& |
| R901204539 | 4WRKE27W6-500L-3X/6EG24ETK31/F1D3M |
| R900731496 | 4WRKE27W6-500L-3X/6EG24K31/A1D3M |
| R901559292 | 4WRKE27W6-500L-3X/6EG24K31/A1D3M-259 |
| R978916045 | 4WRKE27W6-500L-3X/6EG24K31/A1D3M43A1295 |
| R901430698 | 4WRKE27W6-500L-3X/6EG24K31/A1D3M-772 |
| R900616821 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M |
| R901400201 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M-280 |
| R978916104 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M43A1295 |
| R901272383 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M-535 |
| R900702111 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M-535=& |
| R901106202 | 4WRKE27W6-500L-3X/6EG24K31/A5D3M-871=& |
| R901313951 | 4WRKE27W6-500L-3X/6EG24K31/C1D3M |
| R901147944 | 4WRKE27W6-500L-3X/6EG24K31/F1D3M |
| R901209787 | 4WRKE27W6-500L-3X/6EG24TK31/A5D3M |
| R901329115 | 4WRKE27W6-500P-3X/6EG24K31/A1D3M |
| R900701429 | 4WRKE27W8-500L-3X/6EG24EK31/A1D3M |
| R900725366 | 4WRKE27W8-500L-3X/6EG24EK31/A5D3M |
| R900778594 | 4WRKE27W8-500L-3X/6EG24EK31/A5D3M-280 |
| R901097952 | 4WRKE27W8-500L-3X/6EG24EK31/F1D3M |
| R901199286 | 4WRKE27W8-500L-3X/6EG24ETK31/A1D3M |
| R901126339 | 4WRKE27W8-500L-3X/6EG24ETK31/A5D3M |
| R901115085 | 4WRKE27W8-500L-3X/6EG24ETK31/F1D3M |
| R901250339 | 4WRKE27W8-500L-3X/6EG24ETK31/F1D3V |
| R900750794 | 4WRKE27W8-500L-3X/6EG24K31/A1D3M |
| R900706180 | 4WRKE27W8-500L-3X/6EG24K31/A5D3M |
| R901088135 | 4WRKE27W8-500L-3X/6EG24K31/A5D3M-535 |
| R901023812 | 4WRKE27W8-500L-3X/6EG24K31/A5D3V |
| R901404792 | 4WRKE27W8-500L-3X/6EG24K31/C1D3M |
| R901072883 | 4WRKE27W8-500L-3X/6EG24K31/F1D3M |
| R901274300 | 4WRKE27W8-500L-3X/6EG24K31/F1D3V |
| R901051312 | 4WRKE27W8-500L-3X/6EG24TK31/A1D3M |
| R901083317 | 4WRKE27W8-500P-3X/6EG24K31/A5D3M |
| R901057319 | 4WRKE27W9-500L-3X/6EG24K31/A5D3M |
